Gamme de luminaires décoratifs offrant élégance et performance pour l'espace urbain

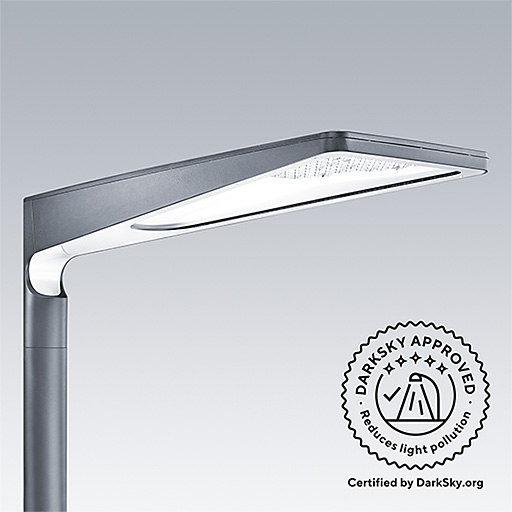

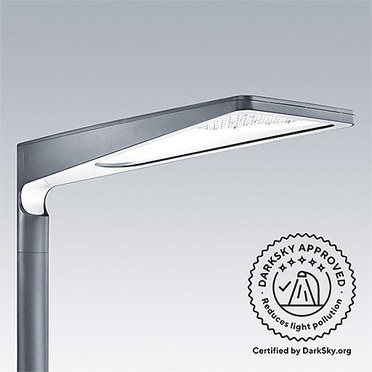

- Certifié IDA (International Dark Sky Association)
- *le label IDA concerne uniquement les luminaires ayant une température de couleur < = 3000 K, et avec une inclinaison maximum de ± 10°. Les luminaires doivent être installés tels que défini par leur photométrie.
- Famille complète de luminaires coordonnées, offrant une harmonie dans les projets urbains
- Design exclusif par Wilmotte & Industries et signature unique de jour comme de nuit avec à un système optique traitant la problématique du confort pour les usagers (conforme à la classe G6)
- Flexibilité exceptionnelle : 9 optiques, 2 tailles, 3 options de fixation pour répondre aux besoins d’une multitude de projets
- Fait partie de la famille URBA, avec Urba Deco et la borne Urba
- Évolutif avec interface Zhaga
Matériaux et finition
URBA S body: die cast aluminium EN-AC 44300 with zink flake coated screws. Best resistant against corrosion and compatible with seaside environment without additional coating. Standard corrosion class C5 according to ISO 9223: 2012. URBA L body: die cast aluminium (EN AC-46000). Standard corrosion class: C3 and zink flake coated screws.
Anthracite grey textured finish (close to RAL 7043)
Glass: tempered flat glass. Prismatic glass on request
Frame: aluminium - powder polycarbonate, metallised aluminium and varnish
Deflector: ABS anti-UV white (RAL 9016)
Brackets with coordinated columns:
Painted galvanised steel, anthracite grey or black textured finish.
Two diameter conical columns dedicated to Urba post top lantern:
Painted aluminium,anthracite grey or black textured finish
Installation et montage
Luminaire : livré complet et prêt à installer, en une seule caisse. Montage top Ø 60 mm ou Ø 76 mm, longueur de la clé 100 mm, pré-câblage avec 8 m (petit) ou 10 m (grand) de câble H07RN-F. Montage latéral Ø 60 mm avec angles d’inclinaison réglables : 0°, -5°, -10°
Supports avec mâts assortis. Hauteurs de fixation pour le modèle Urba petite taille : 4 à 6 m, pour le Urba grande taille : 6 à 8 m. Mâts livrés avec les boulons d’ancrage. Mâts en aluminium (diamètres : interne 76 mm, externe 96 mm - interne 60 mm et externe 81 mm) avec fixations à bride : 200 x 200 mm. Mâts en acier galvanisé avec fixation à bride : 300 x 300 mm
Prescription
To specify Urba luminaire state:
Highly designed urban street lantern with 2 sizes, 3 mounting options and 2 dedicated optics to comfort (G6). Highly efficient with R-PEC optic. Side entry and post top mountings, wall mounting - 60mm and 76mm diameters. Lateral mounting with tilt adjustments. Zhaga up (ZU) interface for compatibility with wireless funcionalities in the market.
As Thorn Urba
To specify Urba brackets and columns state:
Wide range of coordinated short and long galvanised steel brackets, diameter 76mm top. Cylindrical conical galvanised steel columns up to 8m. Anthracite grey textured finish. 2 diameter aluminium cylindrical conical columns up to 6m.
As Thorn Urba brackets and columns
