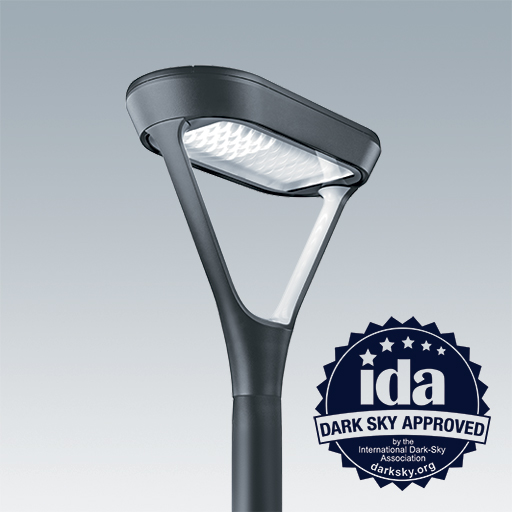

Urba Deco
Smart, sophisticated architectural urban lighting designed by Wilmotte
- Certifié IDA (International Dark Sky Association)
- *Le label de l’association IDA porte uniquement sur la version sans vasque et avec une température de couleur < = 3000 K.
- Design moderne au profil dynamique avec crosses et mâts coordonnés, qui complètent élégamment la famille Urba
- Comfort lighting with Prismatic filter or louver
- High versatility with a choice of five mounting options and wide choice of light distributions
- Smart lantern with Zhaga interface. Zd4i certified
- Tool-free maintenance
- Part of the URBA family: URBA, URBA DECO and URBA bollard
Matériaux et finition
Canopy and base: die cast aluminium (AS9U3, LM24 equivalent, EN AC-46000) textured black close to RAL 9005. Via the configurator: Texturized anthracite (ANT) and 48 other RAL possibilities.
Glass: 6mm thick clear or prismatic glass
Arms: die cast aluminium textured black close to RAL 9005, covered with a white or black (ULOR 0) shield in plastic ASA
Installation et montage
Post top, catenary, suspension and wall mounting. Recommended mounting height: post top 3 to 6m, suspended 3 to 8m, catenary 5 to 8m. Post Top: mounting on spigot/columns Ø60mm or Ø76mm: with 2 screws. Easy maintenance with tool free opening from above. Pre-wired, supplied complete and ready to install, in a single box. Catenary and suspension: fixing through 34G, maintenance with access from below. Dedicated columns and brackets available.
Prescription
To specify state:
Decorative LED lantern with an unique lighting signature. Covers many applications with post top, suspended and catenary variants. Wide optical offer with a comfort prismatic variant and no upward lighting emissions, ULOR 0. Dimming with DALI2, Bi-power, Connectivity with Zhaga interface. Collection of dedicated mounting supports.
Part of the URBA family.
As Thorn Urba Deco.
- New Product
▼ Urba Deco, post top
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25 730 WSC-S CL2 WS1 T60T BK | 20 | 2561 | LED | 7.10 | 96670049 | ||||
| UD 24L35 730 WSC-S CL2 WS1 T60T BK | 28 | 3459 | LED | 7.10 | 96275689 | ||||
| UD 24L50 730 WSC-S CL2 WS1 T60T BK | 38 | 4733 | LED | 7.10 | 96670051 | ||||
| UD 24L70 730 WSC-S CL2 WS1 T60T BK | 52 | 6281 | LED | 7.10 | 96275690 | ||||
| UD 48L35 730 WSC-S CL2 WS1 T60T BK | 51 | 6646 | LED | 7.25 | 96275692 | ||||
| UD 48L50 730 WSC-S CL2 WS1 T60T BK | 72 | 9057 | LED | 7.25 | 96275693 |
▼ Urba Deco, suspended
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L25 730 WSC-S CL2 WS1 MSU-T BK U0 | 20 | 2655 | LED | 6.33 | 96670053 | ||||
| UD 24L35 730 WSC-S CL2 WS1 MSU-T BK U0 | 28 | 3587 | LED | 6.33 | 96279215 | ||||
| UD 24L50 730 EWC CL2 HFX WS5 MSU-T BK U0 | 38 | 4907 | LED | 7.07 | 96670239 | ||||
| UD 24L50 730 WSC CL2 WS1 MSU-L BK U0 | 38 | 4907 | LED | 6.35 | 96670240 | ||||
| UD 24L50-730 WSC-S CL2 WS1 MSU-T BK U0 | 38 | 4907 | LED | 6.33 | 96279217 | ||||
| UD 24L70-730 WSC-S CL2 WS1 MSU-T BK U0 | 52 | 6512 | LED | 6.33 | 96279219 | ||||
| UD 48L35-730 WSC-S CL2 WS1 MSU-T BK U0 | 51 | 7120 | LED | 6.48 | 96279225 | ||||
| UD 48L50-730 WSC-S CL2 WS1 MSU-T BK U0 | 71 | 9703 | LED | 6.48 | 96279227 |
▼ Urba Deco, catenary
| Description | Puissance système (W) | Flux sortant (lm) | Type | Poids (kg) | Code SAP | ||||
|---|---|---|---|---|---|---|---|---|---|
| UD 24L50 730 WSC-S CL2 WS1 MCA-T BK U0 | 38 | 4907 | LED | 7.07 | 96279233 | ||||
| UD 48L50 730 WSC-S CL2 WS1 MCA-T BK U0 | 72 | 9703 | LED | 7.22 | 96279243 | ||||
| UD24L50 730 RWT-S CL LRT CL2 MCA-T U0 | 38 | 4123 | LED | 7.00 | 96272989 |
▼ Crosses et mâts
| Description | Poids (kg) | Code SAP | |||||||
|---|---|---|---|---|---|---|---|---|---|
| UD MSU BRA 0.40M ST BK | 4.00 | 96273397 | |||||||
| UD MSU TOP BRA 0.56M ST BK | 6.50 | 96273396 | |||||||
| UD MSUx1 COL 3.5M ST BK MPL FAI | 55.50 | 96273389 | |||||||
| UD MSUx1 COL 4.5M ST BK MPL FAI | 69.00 | 96273391 | |||||||
| UD MSUx1 COL 4M ST BK MPL FAI | 62.50 | 96273390 | |||||||
| UD MSUx1 COL 5M ST BK MPL FAI | 76.00 | 96273392 | |||||||
| UD MSUx1 COL 6M ST BK MPL FAI | 90.00 | 96273394 | |||||||
| UD MSUx2 COL 5M ST BK MPL FAI | 76.50 | 96273393 | |||||||
| UD MSUx2 COL 6M ST BK MPL FAI | 90.50 | 96273395 | |||||||
| UD MTP COL 3.5M ST D60 BK MPL FAI | 32.50 | 96273384 | |||||||
| UD MTP COL 4.5M ST D60 BK MPL FAI | 40.00 | 96273386 | |||||||
| UD MTP COL 4M ST D60 BK MPL FAI | 36.50 | 96273385 | |||||||
| UD MTP COL 5M ST D60 BK MPL FAI | 45.50 | 96273387 | |||||||
| UD MTP COL 6M ST D60 BK MPL FAI | 58.00 | 96273388 | |||||||
| UD MWA BRA 0.20M ST BK | 2.50 | 96273398 | |||||||
| UD MWA BRA 0.40M ST BK | 3.45 | 96274360 | |||||||
| UD MWA BRA MTP ST BK | 4.05 | 96273942 |
